Main category >o measuring instruments >> multimeters >>> benchtop multimeter

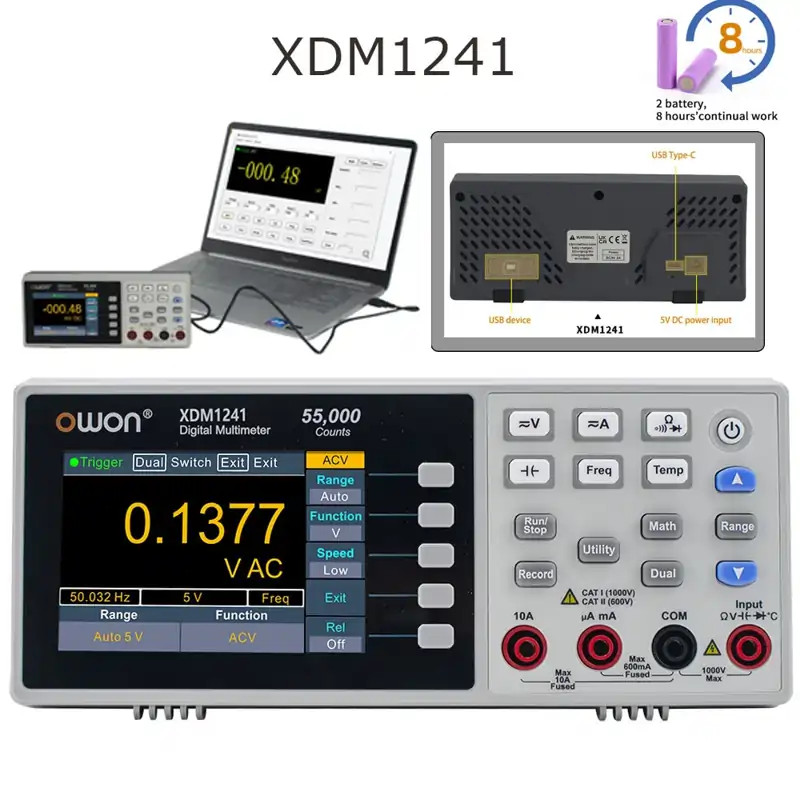

OWON XDM1241 - benchtop multimeter: 55000 counts, PC software

Stock: In stock
OWON XDM1241 - benchtop multimeter: 55000 counts, PC software
  • OWON XDM1241 - benchtop multimeter: 55000 counts, PC software
  • OWON XDM1241 - benchtop multimeter: 55000 counts, PC software
79 900 Ft , (62 913 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
pcs Add to cart Add to cart

OWON XDM1241 multimeter: 55,000 counts display, 65 readings/s sampling rate, uses 3.5-inch LCD screen, supports dual display mode. USB (optional RS232) communication port on the back panel, supporting SCPI and PC software display. Supports a variety of test functions, including DC/AC voltage, DC/AC current, resistance, continuity, diode test, capacitance, temperature, frequency (AC+Hz) measurement, MAX/MIN/average measurement, relative value measurement. In the record mode, we can monitor the measured object and record data changes.

Details Info videos brochure downloads

  • The XDM1041 and XDM1241 versions have similar parameters, the difference is that the XDM1241 is portable due to the built-in Li-ion battery.

    OWON XDM1041, XDM1241
      Measurement Range Resolution Accuracy ±(% of reading +LBS)
     DC Voltage 50.000 mV 0.001 mV 0.1%+10
    500.00 mV 0.01 mV 0.05%+5
    5.0000 V 0.0001 V 0.05%+5
    50.000 V 0.001 V 0.05%+5
    500.00 V 0.01 V 0.1%+5
    1000.0 V 0.1 V 0.1%+10
     AC Voltage 500 mV-750 V 20Hz～45Hz 1% + 30
    45Hz～65Hz 0.5% + 30
    65Hz～1KHz 0.7% + 30
     DC Current 500  uA 0.01  uA 0.15%+20
    5000  uA 0.1  uA 0.15%+10
    50  mA 0.001  mA 0.15%+20
    500  mA 0.01  mA 0.15%+10
    5 A 0.0001 A 0.5%+10
    10 A 0.001 A 0.5%+10
     True RMS AC Current 500  uA-500  mA 20 Hz-1 kHz 0.5%+20
    5-10 A 1.5%+20
     Resistance 500 Ω 0.01 Ω 0.15%+10
    5 kΩ 0.0001 kΩ 0.15%+5
    50 kΩ 0.001 kΩ 0.15%+5
    500 kΩ 0.01 kΩ 0.15%+5
    5 MΩ 0.0001 MΩ 0.3%+5
    50 MΩ 0.001 MΩ 1%+10
     Frequency 10.000 Hz–60 MHz / 0.2%+10
     Capacitance 50 nF-500 uF / 2.5%+10
    5 mF-50 mF 5%+10
     Diode 3.0000 V 0.0001 V /
     Continuity 1000 Ω 0.1 Ω Adjustable threshold
     Temperature K type，PT100
     Max Display 55,000 counts
    Data-logging Function
     Logging Duration 15 ms-9999.999 s
     Logging Length 1,000 points
    General
     Power supply XDM1041: AC power only; XDM1241: AC power & Li-ion battery
     Display screen 3.5" colour TFT LCD, 480x320
     Dimensions 235x88x65 mm
     Dewice weight ~0.45 kg

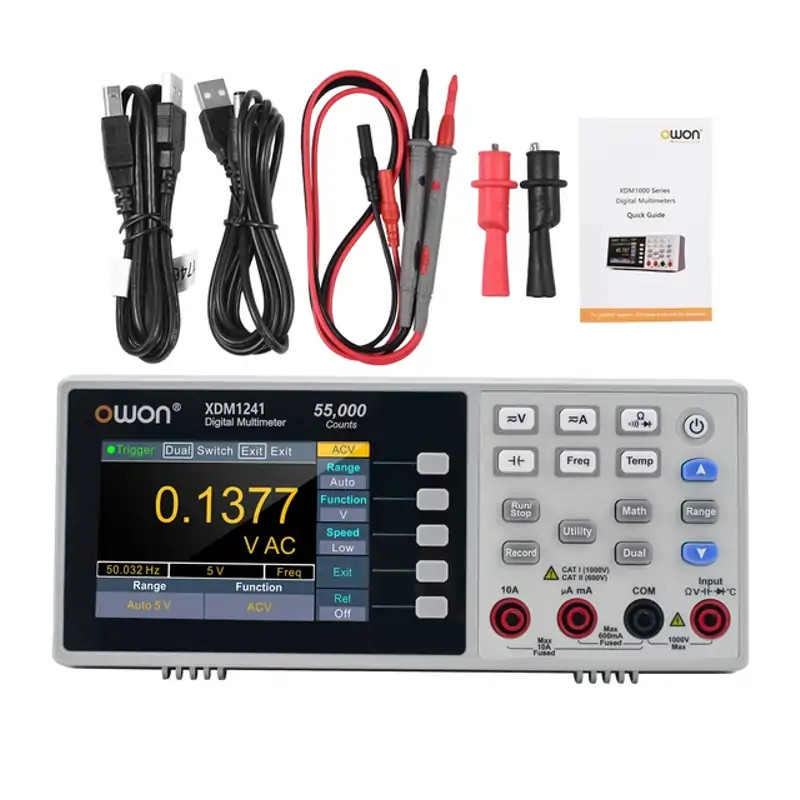

    The package:

    • Multimeter
    • Test leads
    • USB cable
    • Alligator clip
    • Manual
    • Weight: 820 g
    • Size: 25x17x8 cm
