Product Details
Main category >o measuring instruments >> wire locator, wall detector

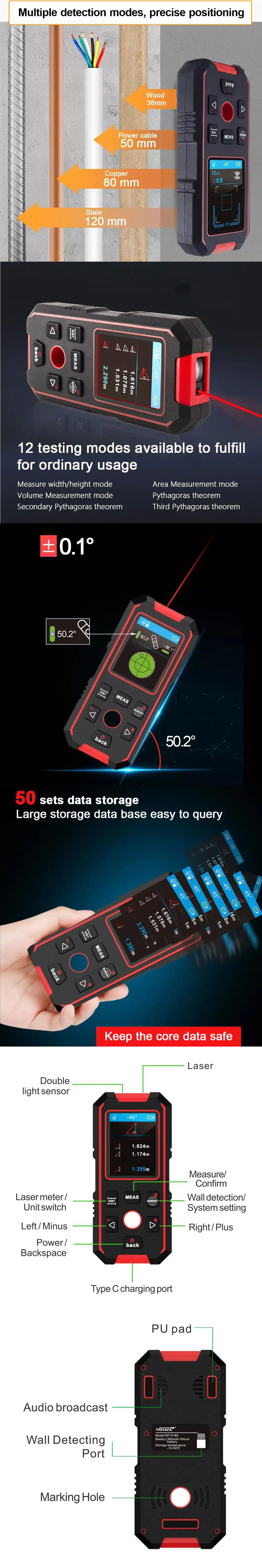

Noyafa NF-518S - 3 in 1: wall detector, rangefinder and inclinometer

Stock: In stock
Noyafa NF-518S - 3 in 1: wall detector, rangefinder and inclinometer
32 900 Ft , (25 906 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
pcs Add to cart Add to cart

Compact measuring instrument with 3 main functions: wall detector, distance meter and inclinometer. Suitable for detecting magnetizable and non-magnetizable metals, AC phase and wooden elements behind walls. The rangefinder has a range of 40 m with 12 measuring modes.

Details Info

  • Details:



    Specifications
    Product number NF-518S
    Functions Laser distance* Wall Detection* Digital level
    Apperance 2 colors, solid shape
    Display 2.4 HD screen, 240*320 resolution
    Charging port USB-C
    Battery type Lithium Battery (390 mAh)
    Protect Level IP54
    Audio Broadcast Live Broadcast
    Dimension (mm) 63*25*139 mm
    Net. Weight (g) 200 g
    Laser Meter Function Wall Detection Function
    Distance 0.2-40/60m Magnetic metal √
    Accuracy ± 1,5 mm + D*0,00005  Non-magnetic metal √
    Laser Type 630-670nm,<1mW AC power Detection √
    Laser Cat. Cat 3 Wood √
    Auto OFF 4 minutes Depth Measurement Maqnetic Metal  12 cm
    Unit Switch m / ft / in / ft+in Non- Magnetic Metal 10 cm
    Benchmark Switch Front / Bottom AC power cable 5 cm
    Continuously Measurement Max / Min value Wood 3.8 cm
    Single Measurement √ Auto off 5 min
    Area Measurement √ Operation Temperature 0~50°C
    Volume Measurement √ Storage Temperature -10~60°C
    Pythagoras theorem √
    Secondary Pythagoras theorem 1 √
    Secondary Pythagoras theorem 2 √
    Triangle area measurement √
    Trapezoid measurement √
    Auto Horizon measurement √
    Auto Vertical measurement √
    Countdown measurement √
    Digital level measurement ±90°
    Plus / Minus √
    History Record Storage √
    Self collaboration √
    Operation Temperature 0~40°C
    Storage Temperature -10~60°C



  • manufacturer
    Noyafa
    unidirectional/bidirectional measurement
    one way
    measuring range (m)
    40
    laser color
    red
    laser class
    Class 2 (IEC/EN60825-1/2014), <1mW
    camera
    x
    bluetooth
    x
    display type
    colour, graphic
    rotating display
    x
    digital protractor
    √, two vertical
    digital bubble
    √
    laser wavelength (nm)
    635
    accuracy (mm)
    ±1,5
    reference points
    2
    max/min measurement
    √
    distance measurement
    √
    area
    √
    painter mode
    x
    volume
    √
    trapezoid
    √
    trapezium calculation with angle
    x
    triangle area
    √
    circular area
    x
    cylinder volume
    x
    stake out
    x
    addition / subtraction
    √
    pythagorean measurements
    134
    triangle operations with angle calculation
    triangle operations with angle calculationtriangle operations with angle calculation
    triangle operations with gyroscope
    triangle operations with gyroscope
    delayed measurement
    √
    other features
    wall detector, digital bubble level
    memory
    50
    sound signal
    english / beep
    calibration
    √
    unit switch
    √
    power source
    390 mAh Li-ion battery
    charging interface
    USB-C
    tripod screw hole
    x
    storage temperature (°C)
    -10-+60
    working temperature (°C)
    0-+40
    laser off (s)
    30
    IP rating
    IP54
    device off (s)
    180
    product size (mm)
    140x65x25
    housing material
    plastic, rubber coating
    buttons
    rubber buttons
    weight (g)
    146
    the package
    device with built in battery, protective case, USB cable
    Stock
    In stock
    Article No.
    noy-518s
    Weight
    500 g/pcs
