Noyafa NF-388 - Wire Fault Locator Network Cable Tester with 8 Far-end Jacks.

Stock: In stock
Noyafa NF-388 - Wire Fault Locator Network Cable Tester with 8 Far-end Jacks.
  • Noyafa NF-388 - Wire Fault Locator Network Cable Tester with 8 Far-end Jacks.
39 800 Ft , (31 339 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage
:
domestic- 24h; international- 24-72h

pcs Add to cart Add to cart

The NF-388 is a kit consisting of a cable tester, wire pair tracker and 8 network terminators. It is an advanced device used for complex network cabling tests.

  • Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
  • Hub blink for locating network port by the flashing port light on Hub / Switch.
  • Check wiring error in 5E, 6E, coaxial cable, such as open circuit, short circuit, jumper wire, reverse connection.
  • Locate the wiring or connection error.
  • Measure cable length up to 1000 m and locate the breakage point.
  • Polarity test function measure DC voltage (0.5-60 V).
  • Memory and storage for calibration data.
  • Automatically time-delay shut off and Low battery alarm function.
  • With 8 remote identifiers, more easy to work.
Details Info downloads videos
  • NF-388 Transmitter specifications
     Indictor LCD 53x25 mm, with back light
     Tone frequency 225 Hz
     Max. distance of transmission 2 km
     Max. distance of cable map 1 km
     Max. working current Less than 70mA
     Tone mode 2 Tone adjustable
     Compatible connectors RJ11, RJ45, BNC, USB
     Max. signal voltage 15Vp-p
     Function and faults LCD display LCD display (wiremap, tone, short, no adapter, low  battery)
     Cable map indication LCD (#1-#8)
     Shielded indication LCD ( #9)
     Voltage protection AC 60 V /DC 42 V
     Battery Type DC 9.0 V
     Dimension(LxWxD) 185x80x32 mm
    NF-388 Receiver specifications
     Frequency 225 kHz
     Max. working current Less than 70mA
     Earjack 1
     LED illumination 2
     Battery Type DC 9.0 V
     Dimension(LxWxD) 218x46x29 mm
    NF-388 Remote unit specifications
     Compatible connectors RJ11, RJ45, BNC, USB
     Remote units 8
     Dimension(LxWxD) 107x30x24 mm

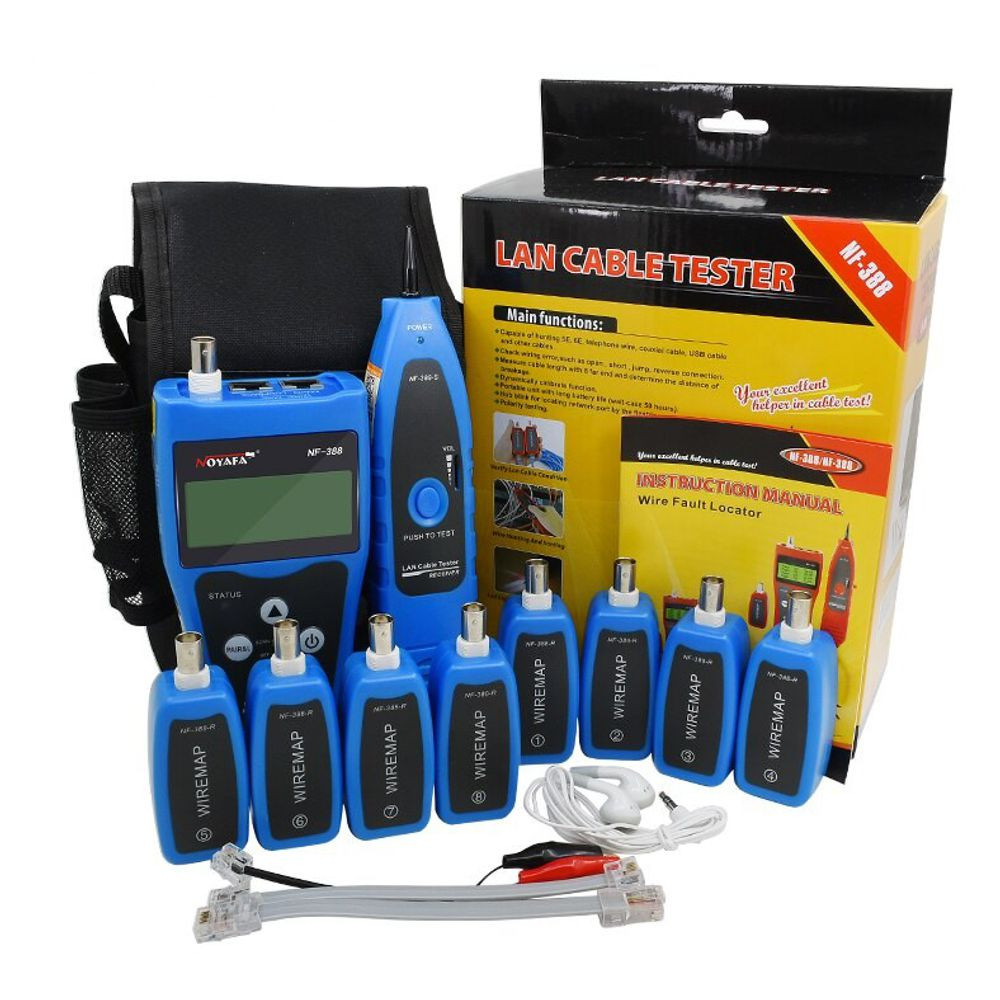

    Package Including:

    • 1* Launcher
    • 1* Receiver
    • 8* Adapter
    • 1* RJ11 cable
    • 1* RJ45 cable
    • 1* Cable with crocodile clamp
    • 1* Earphone
    • 1* Instruction manual
    • size: 23x18x9 cm
    • weight: 860 g



  • In the video you can see the older version, in the new version the second connector on the top of the device is the "port flash", the secondary connector for the local wiremap test is the "RJ45 scan" port on the right side of the device.





    To adjust the remote ID to Match the unit display.
