Product Details
Main category >o laser level >> 12 lines: 3D, 3x360° >>> floor: (horizon laser at the bottom)

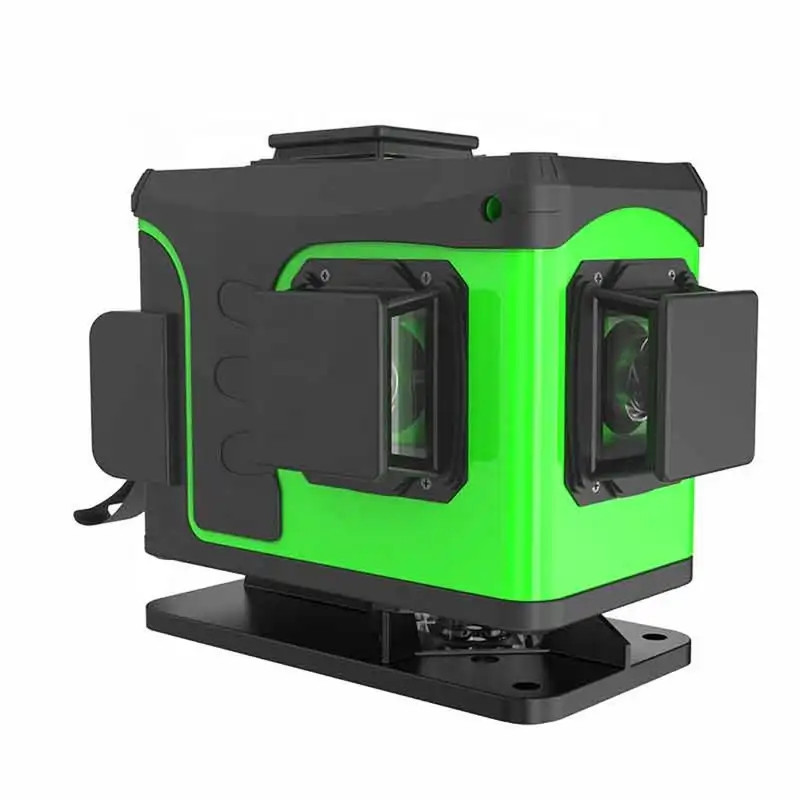

KIRA TD1601B-G12 - 12 lines, 3D (3x360°) Green Beam Laser Level with outdoor mode.

Stock: Out of stock
KIRA TD1601B-G12 - 12 lines, 3D (3x360°) Green Beam Laser Level with outdoor mode.
  • KIRA TD1601B-G12 - 12 lines, 3D (3x360°) Green Beam Laser Level with outdoor mode.
42 300 Ft , (33 307 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
Out of stock

The basic 3D green floor model of KIRA factory, Osram laser.

Details Additional products Info

  • KIRA TD1601B-G12 Green Laser Level Specifications:

    • Laser Beam: Green Beam
    • Product Size:137x82x128 mm
    • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
    • Laser Wavelength: Osram 520 nm
    • Horizontal / Vertical Accuracy: ±1.5 mm/7 m
    • Leveling / Compensation Range: ±3°
    • Leveling Time: ≤4 s
    • Outdoor mode*
    • Working Distance: 25 m**
    • Mount Size: ¼”
    • IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
    • Operating Temperature: Between -10℃ and +50℃

    * compatible with Huepar laser receviers: Huepar LR-6RG;  Huepar LR-5RG; Huepar LR-8RG

    ** Depends on ambient light conditions.

    Package includes:

    • 1 x Laser level
    • 1 x Lithium battery
    • 1 x Charger
    • 1 x Magnetic Base
    • 1 x Lift
    • 1/4" to 5/8" adapter
    • 1 x User Manual
    • 1 x Cloth bag
    • size: 25x20x19 cm
    • weight: 1,9 kg



  • manufacturer
    Kira
    laser class
    Class 2 (IEC/EN60825-1/2014), output power &lt;1mW
    laser diode
    green, OSRAM laser
    levelling method
    pendulum
    laser wavelength (nm)
    520
    number of laserdiode
    2 vertical, 1 horizontal
    number of laser lines
    12
    rotatable laser window
    x
    laser lines fan angles
    3x360°
    accuracy
    ±3 mm / 10 m
    bluetooth
    x
    mobile app
    x
    LCD display
    x
    remote control
    x
    self leveling mode
    √
    tilt mode
    √, * *
    tilt adjustment extras
    x
    outdoor mode
    √
    leveling compensation range
    3° ±1°
    self leveling time (s)
    4
    working distance (m)
    15-20
    adjustable brightness level
    x
    working distance with detector (m)
    30-40
    distance of laser line from floor level (mm)
    12
    laser line distance from wall and ceiling (mm)
    12, 12
    power source
    rechargeable battery, direct input
    rechargeable battery type
    Li-ion, 3,7 V, 4000 mAh
    operating time (h)
    5-6
    charging time (h)
    8
    battery charging method
    outside the device
    charging power
    5 V, 1 A
    port
    micro USB
    IP rating
    IP54
    operating temperature (°C)
    -10℃- +50℃
    storage temperature (°C)
    -20℃- +70℃
    housing material
    plastic, thin rubber coating, plastic laser window frame
    device dimensions (l*h*w) (mm)
    137(146)x112x86 mm
    thread mount
    1/4''-20
    the package
    device, magnetic bracket with fine adjustment, magnet plate, lift, battery, charger, remote control, ¼ - ⅝ adapter, manual, foam padded canvas bag
    garantie
    1 year
    Stock
    Out of stock
    Article No.
    kir-td1601bg12
    Weight
    1.9 kg/pcs
