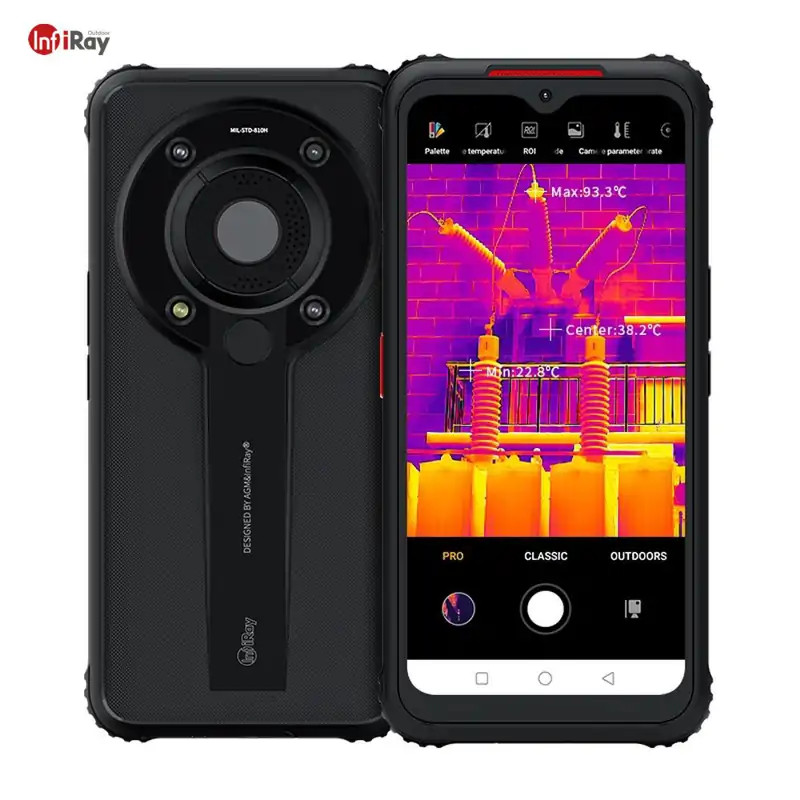

InfiRay PX1 - rugged smartphone with thermal imaging camera: 8+256 GB, 5G, 6.53", NFC, IR 256x192, industrial grade
Developed in partnership with AGM, a company specialising in the manufacture of rugged phones.
1. Fully rugged smartphone built to withstand very tough of environments.
2. Adopt Qualcomm Snapdragon 480 5G Octa Core 8 nm up to 2.0 GHz CPU, 8 GB RAM +256 GB ROM large memory, operate the phone smoothly.
3. 48 MP + 20 MP low illumination + 2 MP macro back camera, support thermal imaging camera, capture the wonderful moment, make the photo sharp and vivid.
4. 6.53 inch screen, you can enjoy media in stunning detail and vivid color.
5. Powered by 5500 mAh large capacity battery, the battery will make the phone last for several days in normal use.
6. IP68 / IP69K standard waterproof and dustproof, can be submerged in water and is immune to dust ingress while its protective rubberized outer provides tough shell for protection against drops and also makes it easy to hold.
-
On October 20, 2022, InfiRay released the first cross-border product - Industrial Thermal Imaging 5G Smart Device PX1. It is embedded with 12μm 256×192 InfiRay self-developed high-performance infrared detector. It can resolve a minimum temperature difference of 40mk, and the temperature measurement accuracy can reach ±2℃. It supports a wide temperature measurement range of -20℃~550℃, which can meet the needs in different industries.
Industrial Thermal Imaging 5G Smart Device PX1 has 4 core advantages to facilitate mobile intelligent inspection in harsh environments.
1.Three-spectrum Sensing, for thermal imaging in various scenarios
PX1 features a three-spectrum system integrating 48-megapixel visible light imaging, 20-megapixel low light night vision, and 256×192 thermal imaging. Therefore, engineers can use it for routine inspections at any time without omission of any blind spot and work effectively for photo taking and measurement regardless of the light conditions.
2. Qualcomm 8-core 5G s smart platform + professional SDK, for continuously enriching app ecology
PX1 supports 5G communication, and can upload thermal imaging pictures and videos anytime and anywhere. It also realizes high-speed and delay-free interconnection to quickly share on-site data and diagnosis results. Provided with professional SDK, PX1 supports industry customers to develop their own platforms based on SDK, such as online targeting/alignment/PQ power quality of large manufacturing enterprises, and other app development, and it is easier to access the enterprise management platform.
3. Built-in professional App for temperature measurement and analysis, taking thermal imaging photo to analyze quickly and accurately
The professional temperature measurement analysis APP supports one-click generation of test reports, and supports the drawing of image temperature measurement tools. It has 4 thermal imaging modes and 9 pseudo-colors to meet the needs of different users.
4. Solid and Durable, for free and safety
Complying with the MIL-STD-810H standard, the solid and durable PX1 boasts the IP68/IP69K performance (waterproof and dustproof) and 1.5m-drop protection. It is a portable and useful tool, bringing “freedom” to work under harsh conditions such as railways, mines, electric power, petrochemicals, and construction.
Product Name InfiRay PX1 2/3/4G √ 5G √ SIM Card Mode Dual Cards √, NR+ LTE dual standby Active/Stand by Card Switching √ Voice Standard W-CDMA WB √ VOLTE √ VONR √ Size 172.8x82.2x14.5 mm Custom Button √ OS Version Android 11 Platform Name Snapdragon 480, 8nm 2A76 @2.0GHZ+ 6A55 @1.8GHZ Protection Rating IP68/IP69K, MIL-STD-810H Slot Quantity Choose 2 of 3 SIM Card Hot Plugging √ Capacity UFS2.2; 8 GB + 256 GB Expansion Memory (TFCard) √, 512 GB Screen 6.53", 2340x1080 Other Features Corning Gorilla Glass Front Camera 16 MP Rear Camera Pixels 48 MP + 20 MP low illumination + 2 MP macro + thermal imaging Flashlight √ Infrared Fill-in Light √ Infrared Thermal Imaging 256x192; 3.2 mm Optical Sensor √ Distance Sensor √ Geomagnetic Sensor √ Fingerprint Sensor √ Gyroscope √ Interface Type TYPE-C, 3.0 OTG √ Earphone 3.5 mm port MIC √ Speaker 1217 BOX WLAN Protocol 802.11a/b/g/n/ac/ax-ready Satellite Positioning GPS, GLONASS, BeiDou Dual frequency positioning √ Bluetooth V5.0 NFC √ Radio √ Publicized Capacity (Typical Value) 5500 mAh Maximum charging power 18 W Wireless charging √ Device weight 320 g Package weight 590 g Package size 20x11,5x5,5 cm
-
manufacturer Infiraytype built into the phoneapplicability mainly thermometryIR resolution 256x192 pixelmeasuring range -20°C -+550°Cpixel size 12 μmaccuracy ±2°C or ±2%, the greater shall prevailNETD <40mK@25°C, F#1.0correction emissivity, distance, environmental temperaturespectral band 8-14 μmframe rate 25 Hzinterface built in phonepalettes 9processor self-developed ASIC chipmeasurement modes max/min/average; /point /line /square area /circular areafocal length 3,2 mminformation sharing instant picture sharingdata analysis secondary temperature analyzing and processing of thermal imagesimaging tool 6.53" touch screenfocusing mode fixed focus lenssoftware update online updateStock In stockArticle No. iray-px1Weight 600 g/pcs
