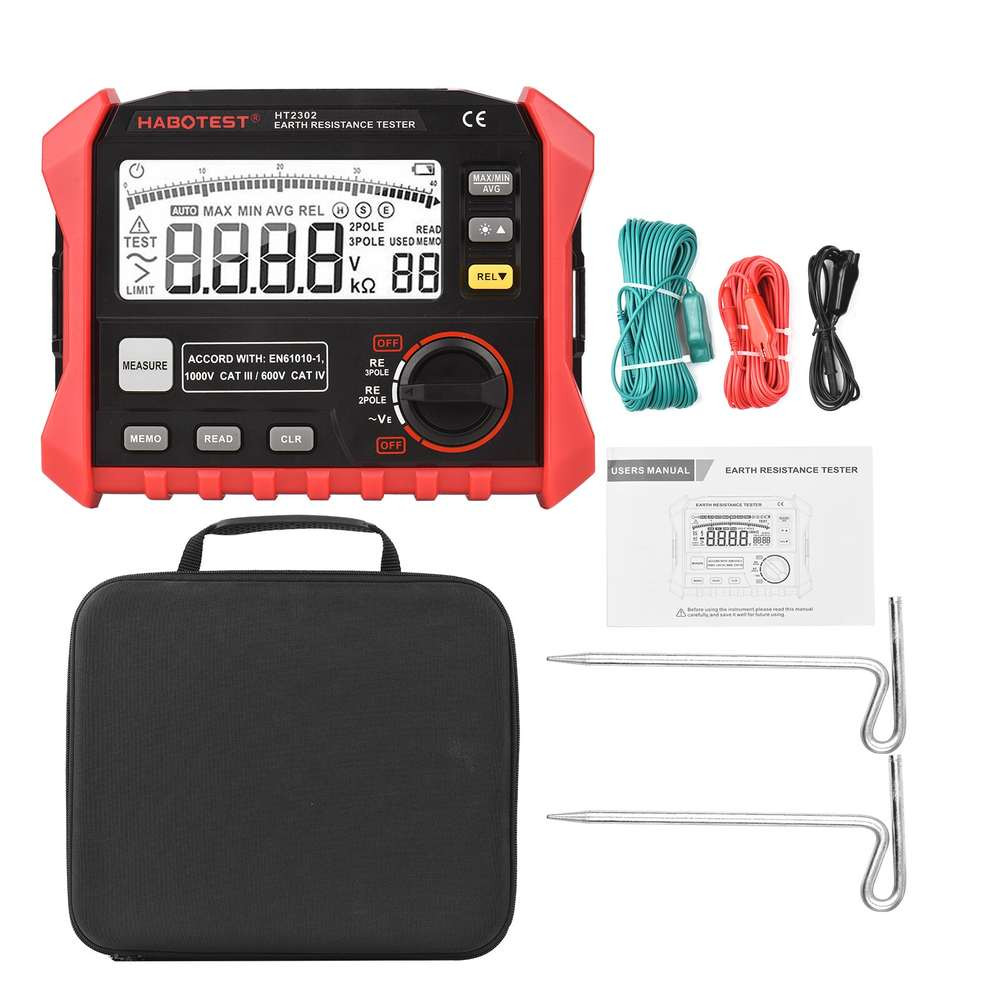

Habotest HT2302 - earth resistance tester: 2 pole and 3 pole mode, 0-4000 Ω, 0-200 V
HT2302 Meter is applicable to the testing of the earth resistance of the power supply wires,
distribution wires inside a room, electrical equipment or appliance.
Which can done in two measurement modes: Bi-poles or Tri-poles, it also can be used to measure the earth voltage.
Large digital LCD and backlight applied to the meter facilitate users to read the information on LCD.
Besides, the meter is capable of storing up to 100 groups of measurement data, which will not be lost even in case of power cuts so that the user can easily consult the historical data.
In addition, the meter can also be used to measure maximum, minimum or average and measure relatively.
Auto Power-off function has been provided for it.
-
Habotest HT 2302 specifications Range Accuracy Resolution Earth ground resistance 0Ω~29.99Ω ±(2%+6dgt) 0.01 Ω 30Ω~99.9Ω ±(3%+3dgt) 0.1 Ω 100Ω~999Ω ±(3%+3dgt) 1 Ω 1.00kΩ~4.00kΩ ±(3%+3dgt) 10 Ω Earth voltage 0V~200V(50~60Hz) ±(1%+5dgt)) 0.1 V Display Digital display Display backlight √ Bargraph √ Measurement mode 2 pole and 3 pole mode Inverter 800 Hz / 3 mA Measurement function Max /Min /AVG /Rel /Normal Data logger 100 groups Low battery indication √ Power supply 8*1.5 V AAA batteries Auto power off √ Product weight approx 950 g Size 180*140*65 mm Saftey rating EN61010-1,EN61557-3,EN61326-1,CAT.IV600V,CAT.III 1000V
-
manufacturer HabotestStock Out of stockArticle No. hab-ht2302Weight 1.3 kg/pcs
