FNIRSI-5012H - digital oscilloscope: 2.4-inch screen, 500 MS/s sampling rate, 100 MHz analog bandwidth, waveform storage

Stock: In stock
FNIRSI-5012H - digital oscilloscope: 2.4-inch screen, 500 MS/s sampling rate, 100 MHz analog bandwidth, waveform storage
  • FNIRSI-5012H - digital oscilloscope: 2.4-inch screen, 500 MS/s sampling rate, 100 MHz analog bandwidth, waveform storage
43 350 Ft , (34 134 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
pcs Add to cart Add to cart

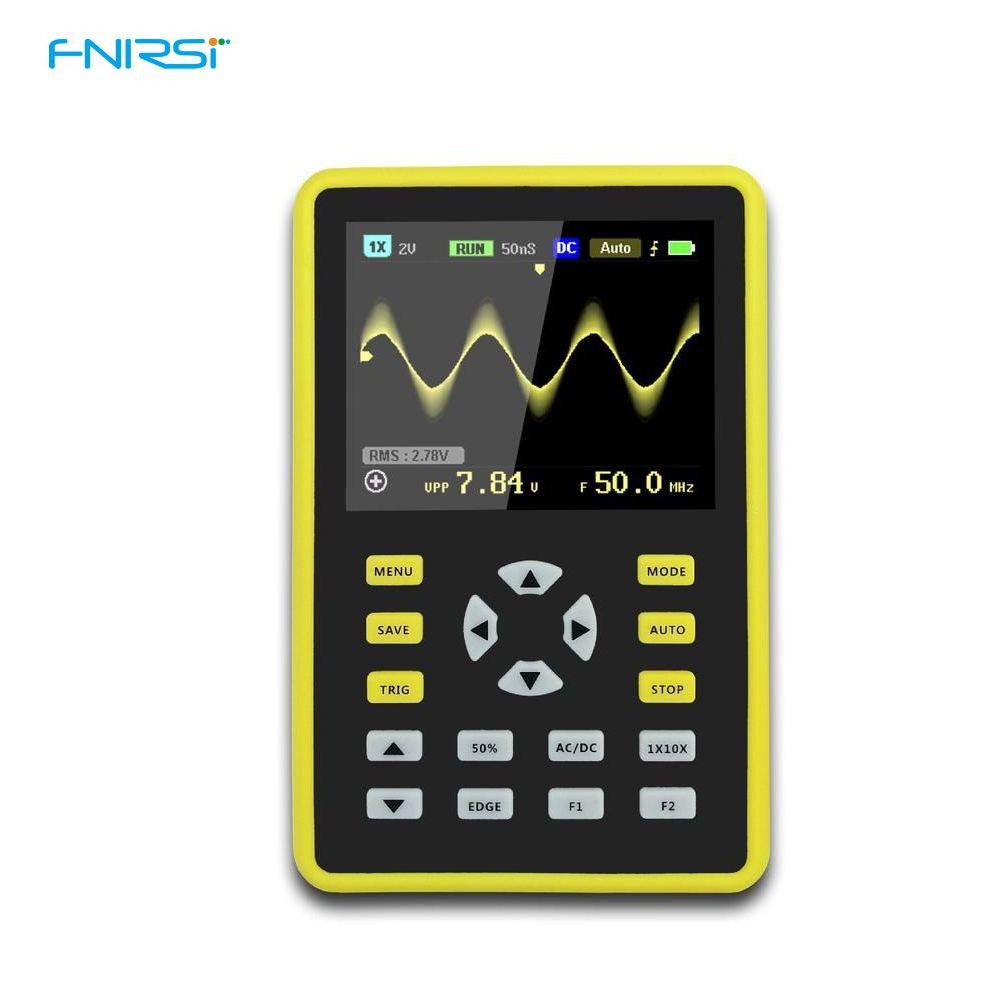

FNIRSI 5012H is a portable single-channel digital oscilloscope with 500 MS/s sampling rate and 100 MHz bandwidth. The tool is equipped with a 2.4-inch TFT color display and is powered by a built-in 3000 mAh lithium battery that provides up to 8 hours of continuous work.

  • Compact size.
  • Afterglow display technology.
  • 2.4 inch color display screen.
  • 100 MHz analog bandwidth, 500 MS/s sampling rate (1X = 5 MHz,10X = 100 MHz).
  • Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions.
  • Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time.
  • Complete triggering function (single, normal, automatic).
  • One-button waveform storage.
  • Automatic measurement function.
  • Built-in 64 MB storage space, the maximum storage of 2000 waveform pictures.
  • At any time, the waveform display (pause function) is frozen.
    Screen brightness adjustment.
  • Built-in 3000 mAh rechargeable lithium battery, providing up to 8 hours of continuous use.
  • Anti-slip anti-drop silicone sleeve.
Details Info downloads

  •

    FNIRSI 5012H specifications
     Channel 1
     Bandwidth 100 MHz
     Sampling rate 500 MS/s
     Storage depth 128 KB
    Input
     Input Coupling DC, AC
     Input Impedance 1 MΩ, 25 pF
     Passive probes 1 X, 10 X
     Max. input voltage 80 V (1 X), 800 V (10 X)
    Horizontal System
     Time base scale 50 s/div - 6 ns/div
    Vertical System
     Time base scale 50 mV/div - 100 V/div
     Rise time < 3 ns
     Vertical resolution 8 bit
     Voltage accuracy ± 2%
     Frequency accuracy ± 0,01%
    Trigger System
     Trigger Mode Auto, Normal, Single
     Trigger Type Ascending/descending edge
    Measuring System
     Automatic measurements VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-
     Cursor measurements XY, Y trigger
    General Specifications
     Display color TFT-display, 2.4 inches, 320 × 240 pixels
     Power Built-in 3000 mAh lithium battery, up to 8 hours continuous work
     Interface microUSB
     Built-in memory 64 MB
     Dimensions 144 × 74 × 33 mm
     Net weight 388 g



    The Package:

    • FNIRSI 5012H
    • Measuring Probe
    • MicroUSB Cable
    • User Manual
    • Bag for Storage and Carrying
    • Package size: 17x11x4 cm
    • Package weight: 420 g
