Product Details
DEG 4D01-H16C - 16 line 4D (4x360°) green laser level with remote control, adjustable brightness level
For everyday use. 3 brightness levels, strobe mode, outdoor mode, many accessories, storage box.
-
Specifications:
- Laser Beam: green, DEG laser diode
- Projection: 16 Lines Green Laser Level
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW output
- Laser Wavelength: 532 nm
- Horizontal / Vertical Accuracy: ±3 mm / 10 m
- Leveling / Compensation Range: 3°±1°
- Leveling Time: ≤4 s
- Tilt mode
- Outdoor mode
- 3 brightness levels (2 + strobe mode)*
- Working Distance: 15-20 m **
- Working Distance: ~40 m with detector ***
- Laser line distance from floor level: 15 mm
- Laser line distance from wall and ceiling: 9 mm
- Working Time: About 7 hours
- Power Source :12 V / 2600 mAh lithium battery
- Charging Time:About 5 hrs
- Mount Size: 1/4''
- IP Rating: IP54
- Operating Temperature: -10℃ ~ +50℃
- Storage temperature: -20℃ ~ +70℃
* strobe-like flashing increases visibility
** Depends on ambient light conditions.
*** compatible with Huepar laser receviers: Huepar LR-6RG; Huepar LR-5RG; Huepar LR-8RG

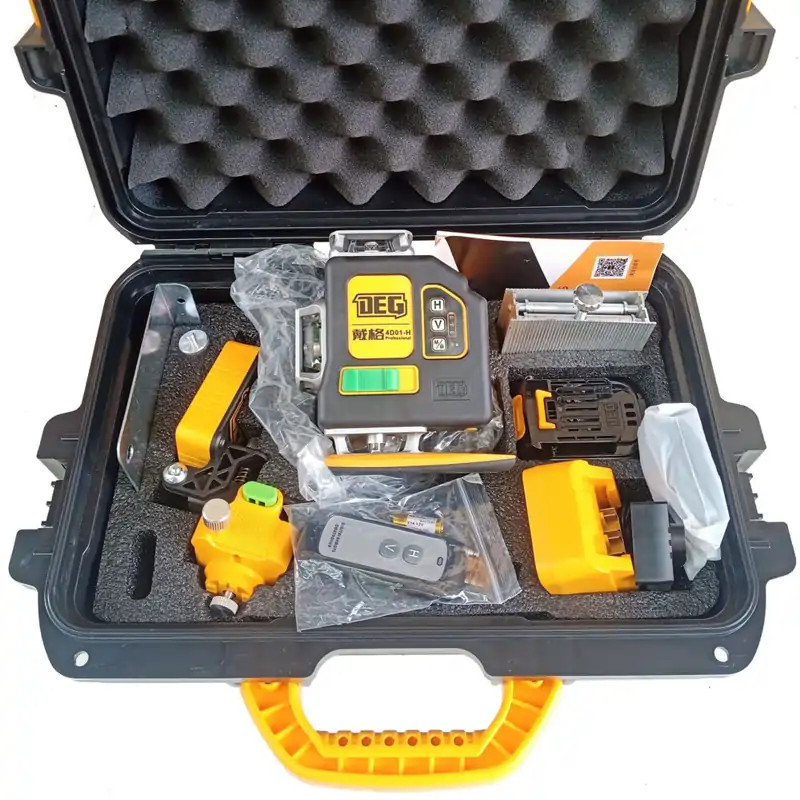

Contents of the package:
- hard plastic box
- laser device
- battery
- charger
- magnetic bracket
- magnet plate
- remote control
- mini lift
- ¼" - ⅝" adapter
- manual
- package weight: 3.7 kg
- package size: 42x28x19 cm
- Laser Beam: green, DEG laser diode
-
5 850 Ft , (4 606 Ft+VAT)
1 475 Ft , (1 161 Ft+VAT)
21 350 Ft , (16 811 Ft+VAT)
-
99 900 Ft , (78 661 Ft+VAT)
95 250 Ft , (75 000 Ft+VAT)
-
manufacturer DEGlaser class Class 2 (IEC/EN60825-1/2014), output power <1mWlaser wavelength (nm) 520number of laserdiode 2 vertical, 2 horizontallaser lines fan angles 4x360°accuracy ±3 mm / 10 mbluetooth xmobile app xLCD display xremote control √self leveling mode √tilt adjustment extras xleveling compensation range 3° ±1°self leveling time (s) 4working distance with detector (m) 40distance of laser line from floor level (mm) 15power source rechargeable batteryrechargeable battery type Li-ion, 12 V, 2600 mAhoperating time (h) 8-16 (depends on brightness)charging time (h) 5battery charging method outside the devicecharging power input: 5 v 2 A: output: 12 V, 0,6 Aport xIP rating IP54operating temperature (°C) -10℃- +50℃storage temperature (°C) -20℃- +70℃housing material plastic, rubber coating, robust metal laser window framethread mount 1/4''-20the package device, massive magnetic bracket: lift & fine adjustment, magnet plate, lift, charger, battery, remote control, ¼ - ⅝ adapter, manual, sturdy padded plastic suitcaseStock Out of stockArticle No. deg-4d01h16cWeight 4 kg/pcs
