Product Details

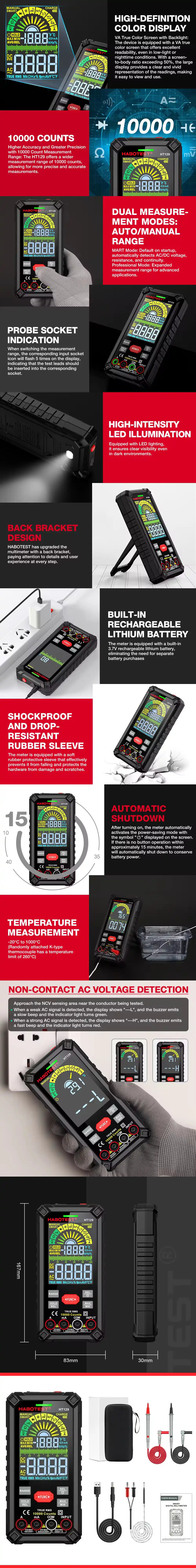

Habotest HT129 - Intelligent portable multimeter: VA color big display screen, 9999 counts, 1000 V, 10 A, with many features.
Habotest HT129: new generation multimeter, True RMS, relative measurement, capacitance, diode test, temperature, frequency etc., 10000 digits, CAT IV 600 V
-
Specifications:
HABOTEST HT129 Function Range Accuracy DC Voltage 99.99mV /999.9mV /9.999V /999.9V /1000V ±(0.5%+3) AC Voltage 99.99mV /999.9mV /9.999V /999.9V /750V ±(0.8%+3) DC Current 9.999mA /99.99mA /999.9mA ±(0.8%+3) 9.999A ±(1.2%+3) AC Current 9.999mA /99.99mA /999.9mA ±(0.8%+3) 9.999A ±(1.2%+3) Resistance 99.99Ω /999.9Ω /9.999kΩ /99.9kΩ /9.999MΩ ±(1.0%+3) 99.99MΩ ±(2.0%+3) Capacitance 9.999nF /99.99nF /999.9nF /9.999uF /99.99uF /999.9uF ±(4.0%+5) 9.999mF /99.99mF ±(5.0%+5) Frequency 99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /9.999MHz ±(1.0%+3) Duty 0.1%~99.99% ±(1.0%+3) Temperature -40℃~0℃ ± 5.0% or ±3°C 0℃~400℃ ± 1.0% or ±2°C 400℃~1000℃ ± 2.0% SMART Function (AC/DC) voltage, Resistance and Continutity √ Automatic identification of current input √ Fise Burning Prompt Function √ Input Jack LED indication √ Counts 10000 Counts Display VA colour display screen Bargraph √ Live test √ (sound and light alarm) NCV √ (sound and light alarm) Diode test √ Continuity test √ (sound and light alarm) MAX/MIN Data Hold √ Relative measurement √ Data hold √ True RMS √ Bandwidth 40-1 KHz Low battery indication √ Auto power off √ Flashlight √ Battery Charge Function √ Power 3.7 V Li-ion battery Weight Approx. 280 g Size 167 x 83 x 30 mm Safety Rating EN61010-1,-2-030 EN610-2-033, EN61326-1 CAT III 1000 V, CAT IV 600 V Package List:
- 1 * Smart Digital Multimeter
- 1 * Pair of Test
- 1 * Thermal Couple
- 1 * Charging Cable
- 1 * Storage Pouch
- 1 * User Manual (English)
-
manufacturer Habotestgarantie 2 yearsStock In stockArticle No. hab-129Weight 400 g/pcs
